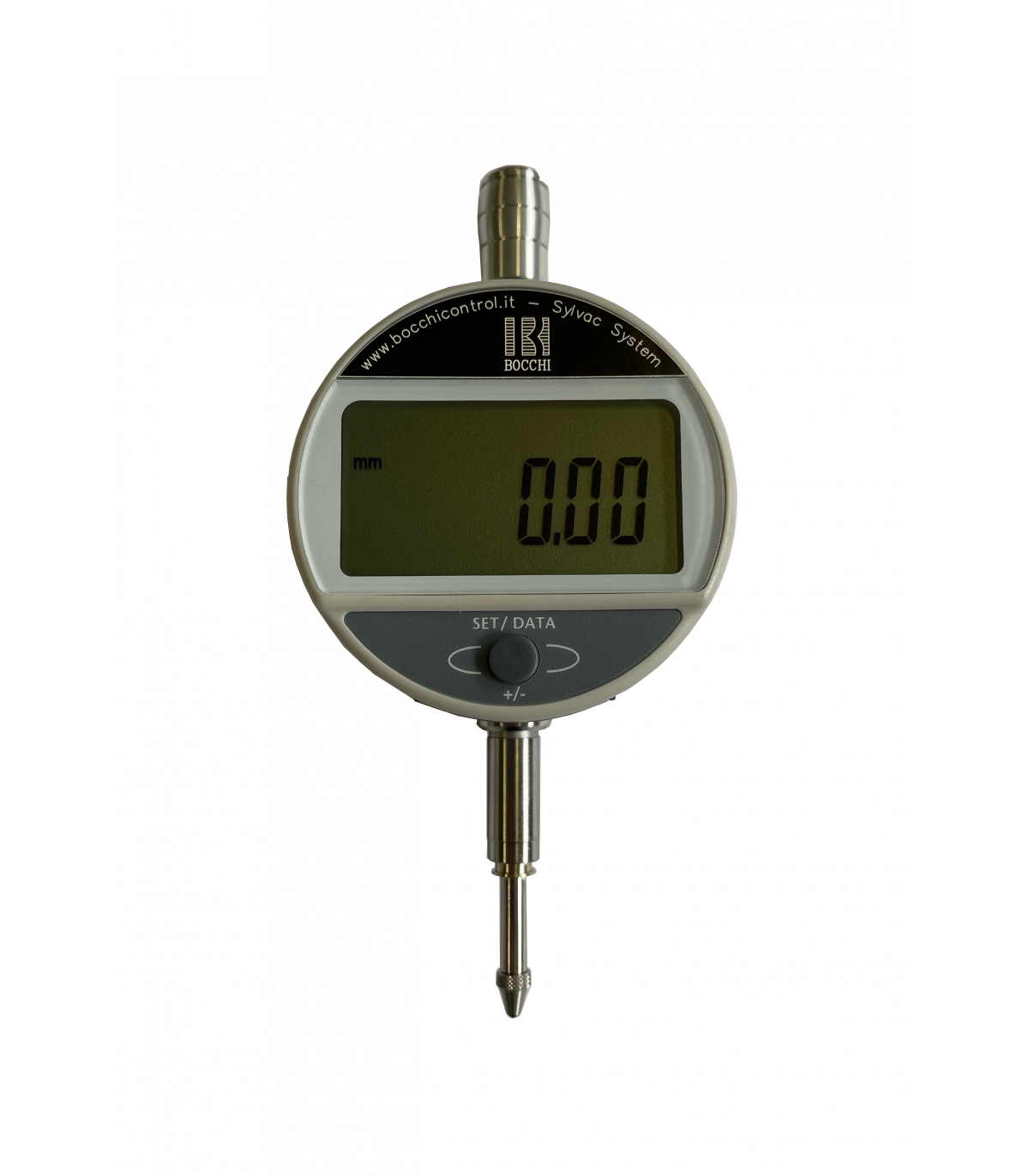

ART.0306 - DIGITAL DIAL INDICATOR
High quality digital indicators. Sylvac digital electronic components with output OPTO RS232 (enable the direct connection to PC). “0” setting function – mm/inch conversion – hold (memory) – REF I/REF II – PRESET –Change of measuring direction +/-. Standard dial diameter of 60 mm, round of 270°, measuring probe in hardened and ground stainless steel, interchangeable contact point M2,5 thread. Clamping rod ø 8 h6 in stainless steel. The version with reading 0,001 mm is supplied along with the Sylvac certificate, the “mini” version has the fix dial with diameter of 42 mm with protection IP65 (water resistant). The sign “P” means a total protection. The sign “A” is for the led tolerance indication min/max. The sign “V” is for the vertical type.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0306
Love0
Add to compare0
|
CODE
|
MODEL
|
READING
(mm)
|
RANGE
(mm)
|
MAX ERROR
(mm)
|
REPEATABILITY
(µm)
|
ø EXTERNAL |
|
01
|
S | 0,01 | 12,5 | 10 | 2 | 60 |
| 02 | S | 0,001 | 12,5 | 5 | 2 | 60 |
| 03 | A+P | 0,001 | 12,5 | 5 | 2 | 60 |
| 04 | S | 0,01 | 25 | 10 | 2 | 60 |
| 05 | S | 0,001 | 25 | 5 | 2 | 60 |
| 06 | A+P | 0,001 | 25 | 5 | 2 | 60 |
| 07 | S | 0,01 | 50 | 20 | 2 | 60 |
| 08 | S | 0,001 | 50 | 7 | 2 | 60 |
| 09 | A | 0,01 | 100 | 20 | 2 | 60 |
| 10 | A | 0,001 | 100 | 8 | 2 | 60 |
| 11 | A | 0,01 | 150 | 20 | 2 | 60 |
| 12 | A | 0,001 | 150 | 9 | 2 | 60 |
| 13 | MINI | 0,01 | 12,5 | 10 | 5 | 42 |
| 14 | MINI P | 0,01 | 12,5 | 10 | 5 | 42 |
| 15 | MINI | 0,001 | 12,5 | 5 | 2 | 42 |
| 16 | MINI P | 0,001 | 12,5 | 5 | 2 | 42 |
| 17 | L | 0,001 | 12,5 | 5 | 2 | 60 |
| 18 | L | 0,001 | 25 | 5 | 2 | 60 |
| 19 | V | 0,01 | 5 | 10 | 2 | 42 |
| 204 | V | 0,01 | 5 | 5 | 2 | 42 |
| 21 | LIFTING DEVICES | |||||
| 22 | CONNECTING CABLE | |||||
