These reversible type plug gauges, due to their modular composition, last twice as long as the normal plug gagues, since their calibrated parts can be inverted in case of wear.Furthermore, it is possible to set the...
Gauge Blocks And Go-NoGo Calipers
Digital zeroing bench suitable for zeroing bore gauges, calipers, micrometers, comparative calipers, etc...Reading of the values on the display.Reading 0.001Rows high precision optics.Movement of measuring device on...
Carabide double ended snap gauges.
Rigid body in steel hardened and toughened duly marked GO-NOGO sizes.
Guaging jaw tips tungsten carabide.
From ø 6 mm to ø 60 mm.
Carbide groove diameter checking snap gauge.
Rigid body in steel hardened and toughened duly marked GO-NOGO sizes.
From ø 5 mm to ø 60 mm.
Smooth plugs differential P-NP with GO side in carbide.
Measuring range: from Ø8 to Ø60 mm
On request, GO and NO GO side in hard metal.
Carabide ring gauge and setting master.
Cylindrical pinscalibrated from Ø1 to Ø10 mm in hard metal.Construction tolerance: ±0.001 mm Roughness: <0.025 µRa Roundness: <0,0005 mmTaper: <0,001 mmLength: 50 mm

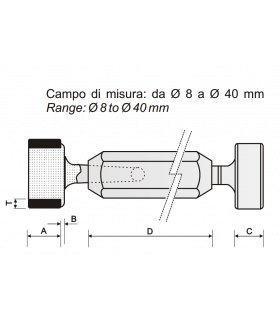

Smooth reversible carbide plugs. Measurement range: Ø1 - Ø8 mm.Aluminium handle (with brass fittings to fix the contacts)"L" PASS side length: 25 mm
Standard lenght 50 mm. Tolerance ±0,002 Rockwell hardness ≥58.
