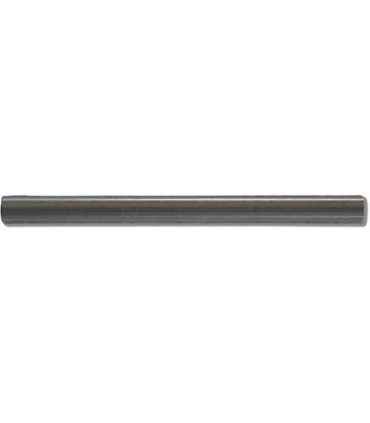

ART.8904 - CARABIDE CYLINDRICAL PINS
Cylindrical pinscalibrated from Ø1 to Ø10 mm in hard metal.
Construction tolerance: ±0.001 mm
Roughness: <0.025 µRa
Roundness: <0,0005 mm
Taper: <0,001 mm
Length: 50 mm
