ART.0603 - SET OF ACCESSORIES FOR GAUGE BLOCKS

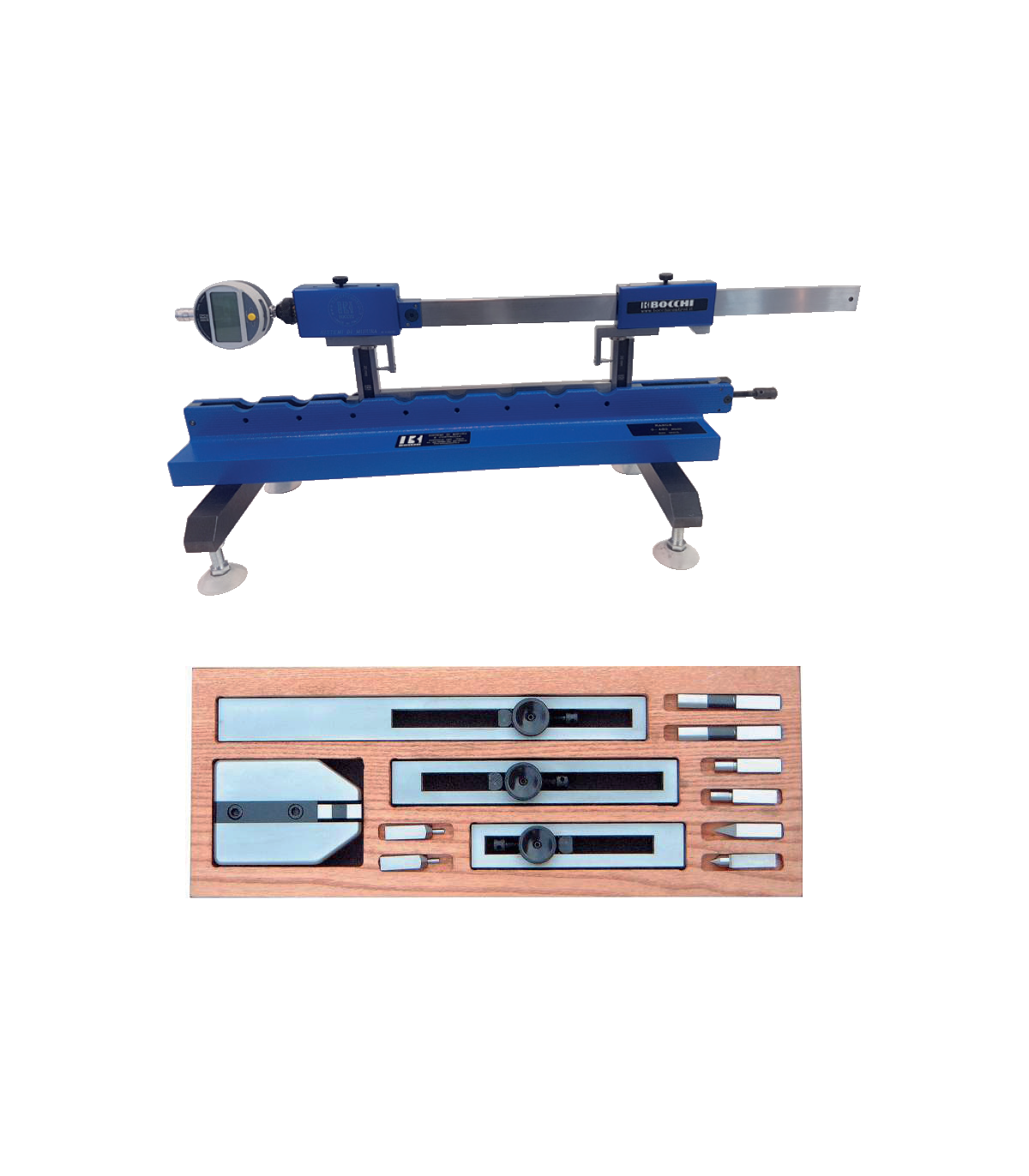

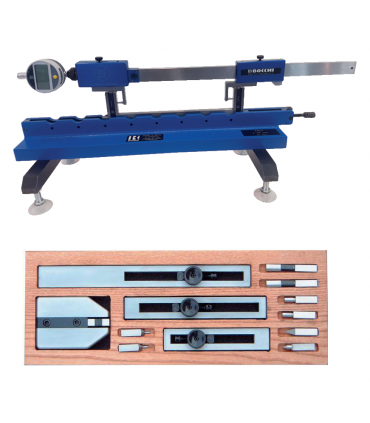

Set of holder accessories. It contains 27 pieces which allow combinations of various gauge blocks. The set contains the following: holders measuring 60, 100, 160, 250 mm.; base; pair of measuring jaws r = 2; pair of measuring jaws r = 5; pair of measuring jaws r = 8; pair of measuring jaws r = 12; pair of measuring jaws r = 20; pair of parallel jaws 160 mm; pair of straight edges 100 and 160 mm.; pair of control points; pair of reference line points; centring point and scribing point. Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0603
Love0
Add to compare0
|

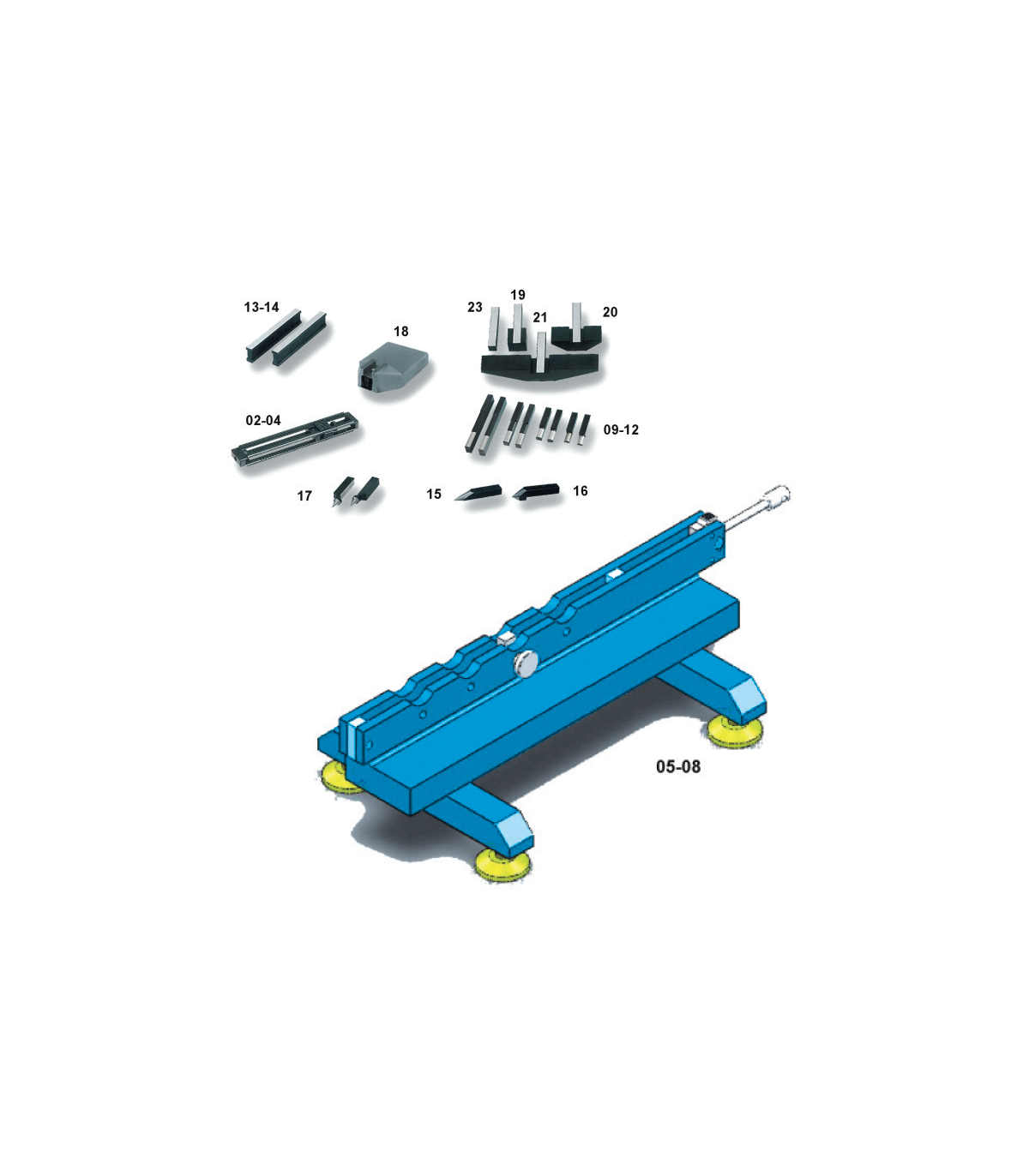

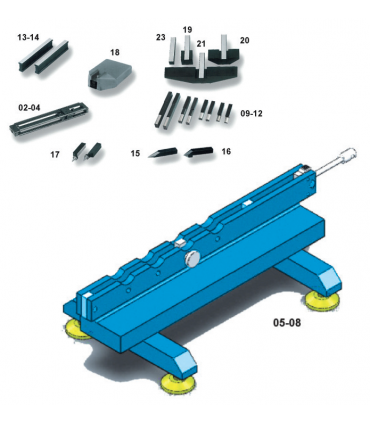

CODE
|
No. PIECES / DESCRIPTION
|
|
01
|
Set 27 pcs.
|
|
02
|
Holders 0 – 160 mm
|
|
03
|
Holders 0 – 200 mm
|
|
04
|
Holders 0 – 400 mm
|
|
05
|
Holders 300 – 500 mm
|
|
06
|
Holders 500 – 1000 mm
|
|
07
|
Holders 1000 – 1500 mm
|
|
08
|
Holders 1500 – 2000 mm
|
|
09
|
Pair of measuring jaws r = 5
|
|
10
|
Pair of measuring jaws r = 8
|
|
11
|
Pair of measuring jaws r = 10
|
|
12
|
Pair of measuring jaws r = 20
|
|
13
|
Pair parallel jaws 80 mm
|
|
14
|
Pair parallel jaws 160 mm
|
|
15
|
Single scribing point 15 mm
|
|
16
|
Single conical point to center holes 8x8mm
|
|
17
|
Pair of control points
|
|
18
|
Base
|
|
19
|
Setting for bore gauges 18 – 35 mm
|
|
20
|
Setting for bore gauges 35 –100 mm
|
|
21
|
Setting for bore gauges 100 – 280 mm
|
|
22
|
Setting for bore gauges 280 – 500 mm
|
|
23
|
Upper contact for all bore gauges
|
