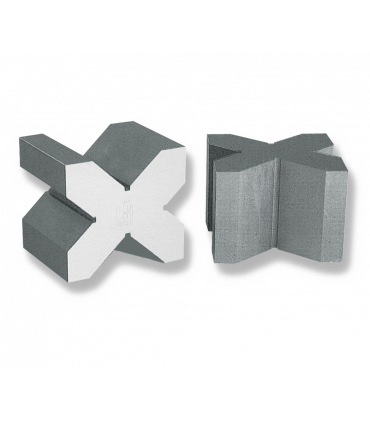

ART.0530 - PRECISION V-BLOCKS
Cross parallelsof very high precision.
Made in tempered and stabilized stainless steel, entirely ground.
With four "V" notches " at 90°.
Manufactured according to precision and parallelism <=0,005 mm.
Supplied in pairs.
