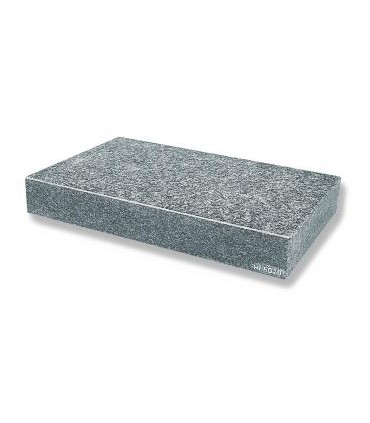

ART.0581 - SURFACE PLATE IN GRANITE
Surface plate in black granite.
Compact, uniform and of high precision.
For use in the metrology room.
Black granite offers many advantages over cast iron: the possibility of manufacture to the smallest tolerances; absolute resistance to corrosion; non-magnetism; non-conductance; minimum wear over time.
Lapped surface.
Top quality manufacture to DIN 876/0 tolerances.
Compact, uniform and of high precision.
For use in the metrology room.
Black granite offers many advantages over cast iron: the possibility of manufacture to the smallest tolerances; absolute resistance to corrosion; non-magnetism; non-conductance; minimum wear over time.
Lapped surface.
Top quality manufacture to DIN 876/0 tolerances.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0581
Love0
Add to compare0
|
CODE
|
SIZE
(mm)
|
TOL.
(µm)
|
WEIGHT
(kg) |
|
01
|
300 x 200 x 40
|
3,5
|
4,800
|
|
02
|
400 x 250 x 50
|
4
|
9,000
|
|
03
|
400 x 400 x 60
|
4,5
|
13,000
|
|
04
|
500 x 315 x 60
|
4,5
|
18,000
|
|
05
|
500 x 500 x 70
|
5
|
28,000
|
|
06
|
630 x 400 x 70
|
5
|
33,000
|
|
07
|
630 x 630 x 90
|
5
|
60,000
|
|
08
|
800 x 500 x 90
|
5,5
|
188,000
|
|
09
|
1000 x 630 x 110
|
6
|
120,000
|
|
10
|
1000 x 1000 x 140
|
7
|
270,000
|
|
11
|
1200 x 800 x 140
|
7
|
260,000
|
|
12
|
1600 x 1000 x 180
|
8
|
480,000 |
|
13
|
2000 x 1000 x 220
|
9,5
|
460,000
|
