Digital caliper in hardened stainless steel with hight technology electronic Sylvac, mm/inch conversion, set to zero in any position, preset, Proximity output. Suitable for measuring the seating of 23° Ring Joint....

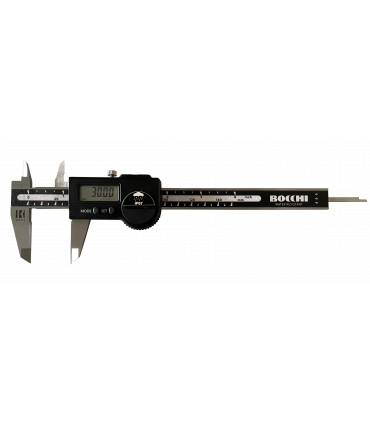

ART. 0052 - DIGITAL CALIPER IP67
Digital caliper made of hardened stainless steel.
SYLVAC patented inductive measuring system, insensitive to water and cooling lubricant oil.
IP67 protection rating according to IEC529.
Liquid crystal display with 5 digits and “-” sign, 6 mm high.
Electronics with automatic shut-off.
MM/inch conversion.
Zeroing at any point.
Proximity data output (allows direct connection to a PC).
Screw lock.
Powered by a CR 2032 lithium battery with 5000 hours of continuous operation.
Equipped with serial number.
Manufactured according to DIN 862.
Supplied in a case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0052
Love0
Add to compare0
| CODE |
READING
(mm)
|
RANGE
(mm)
|
JAWS
(mm)
|

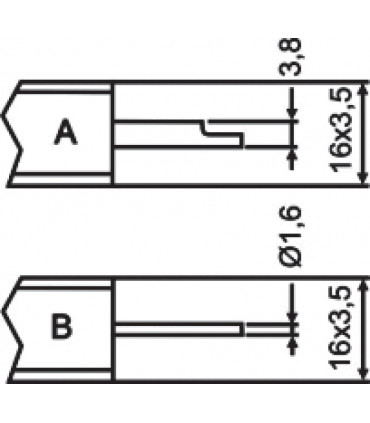

DEPTH ROD |
SECTION
(mm)
|
| 01 | 0,01 – 0,0005” | 150 | 40 | A | 16x3,5 |
| 02 | 0,01 – 0,0005” | 200 | 50 | A | 16x3,5 |
| 03 | 0,01 – 0,0005” | 300 | 65 | / | 16x3,5 |
| 04 | 0,01 – 0,0005” | 150 | 40 | B | 16x3,5 |
| 05 | 0,01 – 0,0005” | 200 | 50 | B | 16x3,5 |
| 06 | BATTERY ø20 CR2032 | ||||

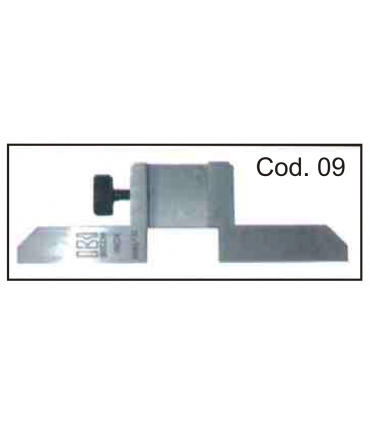

| 09 | BASE 80x8 mm - GROOVE 16x3,5 mm | ||||

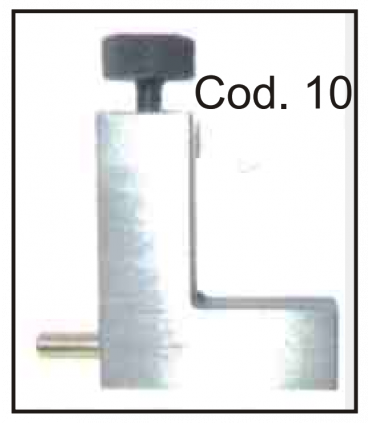

| 10 | PRESSURE DEVICE 6 mm | ||||
| 33 | 0,01 – 0,0005” | 300 | 65 | A | 16x3,5 |
