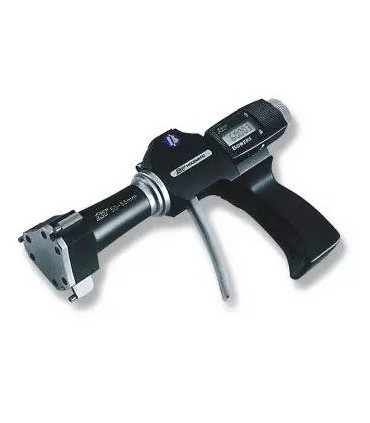

ART.0226 - THREE POINTS MICROMETER FOR INTERNAL MEASUREMENTS WITH DIGITAL DISPLAY
Digital three points inside micrometer.
BOWERS measuring heads with new generation SYLVAC SYSTEM electronic.
Big display.
From 6 to 300mm with 3 contact points in carbide.
Sylvac electronic with output RS232C, 2 preset, tolerance function, min/max, hold, mm/inch, reading 0,001 mm.
Hight accuracy friction.
Screw, cone and contact surfaces in ground and hardened steel.
Lapped measuring contact surfaces.
From diam. 12,5 and over, the measuring anvils are at the same level as the measuring head for measuring blind bores.
Extensions for bigger depth are availlable upon requirement.
Supplied with setting ring with “UKAS” certificate.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0226
Love0
Add to compare0
|
CODE
|
RESOLUTION
(mm)
|
MEASURING RANGE
(mm)
|
DEPTH
(mm)
|
PRECISION
(mm)
|
|
01
|
0,001
|
6÷8
|
58
|
0,004
|
|
02
|
0,001
|
8÷10
|
58
|
0,004
|
|
03
|
0,001
|
10÷12,5
|
58
|
0,004
|
|
04
|
0,001
|
12,5÷16
|
62
|
0,004
|
|
05
|
0,001
|
16÷20
|
62
|
0,004
|
|
06
|
0,001
|
20÷25
|
66
|
0,004
|
|
07
|
0,001
|
25÷35
|
66
|
0,004
|
|
08
|
0,001
|
35÷50
|
80
|
0,004
|
|
09
|
0,001
|
50÷65
|
80
|
0,005
|
|
10
|
0,001
|
65÷80
|
80
|
0,005
|
|
11
|
0,001
|
80÷100
|
100
|
0,005
|
HIGHER SIZES ON REQUEST...
|
CODE
|
RESOLUTION
(mm)
|
MEASURING RANGE
(mm)
|
PRECISION
(mm)
|
|
20
|
0,001
|
SET 6÷10
|
0,004
|
|
21
|
0,001
|
SET 10÷20
|
0,004
|
|
22
|
0,001
|
SET 6÷20
|
0,004
|
|
23
|
0,001
|
SET 20÷50
|
0,004
|
|
24
|
0,001
|
SET 50÷100
|
0,005
|
EXTENSIONS FOR THREE-POINT MICROMETERS TO INCREASE DEPTH...
|
CODE
|
EXTENSION LENGTH
(mm)
|
FOR HEADS WITH RANGE OF MEASUREMENT
(mm)
|
|
50
|
63
|
6÷10
|
|
51
|
76
|
10÷12,5
|
|
52
|
100
|
12,5÷20
|
|
53
|
150
|
20÷50
|
|
54
|
150
|
Oltre 50
|
20 other products in the same category:
External micrometer with widia contacts.Steel bow with insulating handle.Workshop series.Equipped with serial number.Built according to DIN 863 standard.Supplied in case.Complete with key and reset striker.
High quality/accuracy outside micrometer. Casting painted arc heat insulated. Thimble (ø 18 mm) chromed and etched by laser for a clear and long lasting. Friction on the thimble and locking lever. Screw completely...
Digital micrometer for internal measurements.Water and dust protection IP54.Output RS 232.Absolute and relative measurements.mm/inch conversion.Manufactured as per DIN 863.Supplied in case with setting key and setting...
Micrometer with blade contacts.Suitable for measuring the diameter of grooves and external grooves, with a resolution of 0.001mm or 0.00005".The head connot be rotated.
The micrometer has the following functions:...
High quality/accuracy outside micrometer with discs. Casting painted arc heat-insulated. Thimble ( ø 19 mm x step 0,5 – ø 25 mm x step 1) chromed and etched by laser for a clear and long lasting. Friction on the...

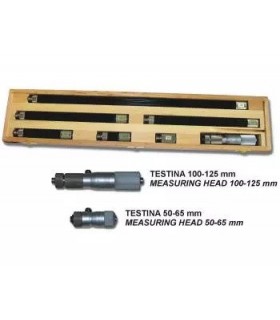

High quality/accuracy inside micrometer with extension rods.Extension rods and measuring head in hardened and ground stainless steel with specific working systems to assure the max accuracy and min bending.Covered...
Digital micrometer for external measurements. Water and dust protection IP54.Output RS232. Absolute and relative measurements. Mm./inch conversion. Contact surfaces in carbide. Manufactured as per DIN 863. Supplied...
Depth measurement micrometer with sturdy hardened and ground base.Interchangeable rods enable that reading does not have to be reset when changing rods.Serial number.Manufactured as per DIN 863/1.Supplied in case.
Digital micrometer for checking side-mills. Water and dust protection IP54. Output RS 232. Absolute and relative measurements. mm/inch conversion. Contact surfaces in carbide. Manufactured as per DIN 863. Setting key...
Micrometer for external measurements with reduced contact surfaces. Suitable for measuring splined shafts or small surfaces. Frame in steel. Serial number. Manufactured as per DIN 863. Supplied in case. Complete with...
Adjusting snap gauge for outside diameters. Steel frame. Fine adjustment for the fixed contact. Range of moving contact 3 mm. Carbide contacts. Supplied without dial indicator.

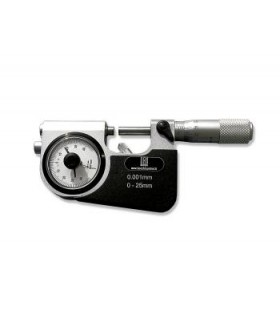

Indicator snap micrometer for measurements to 0,001 mm. Frame in steel. Contact surfaces in carbide. Hardened and ground screw for long-lasting reliability. Suitable for comparison measurements GO/NOGO microdisplay to...

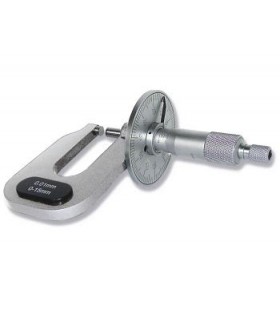

Disc micrometer with 50 mm deep frame in steel. Entirely hardened and ground screw.
